XPRS122

Stage-quality Sound That’s Built to Last

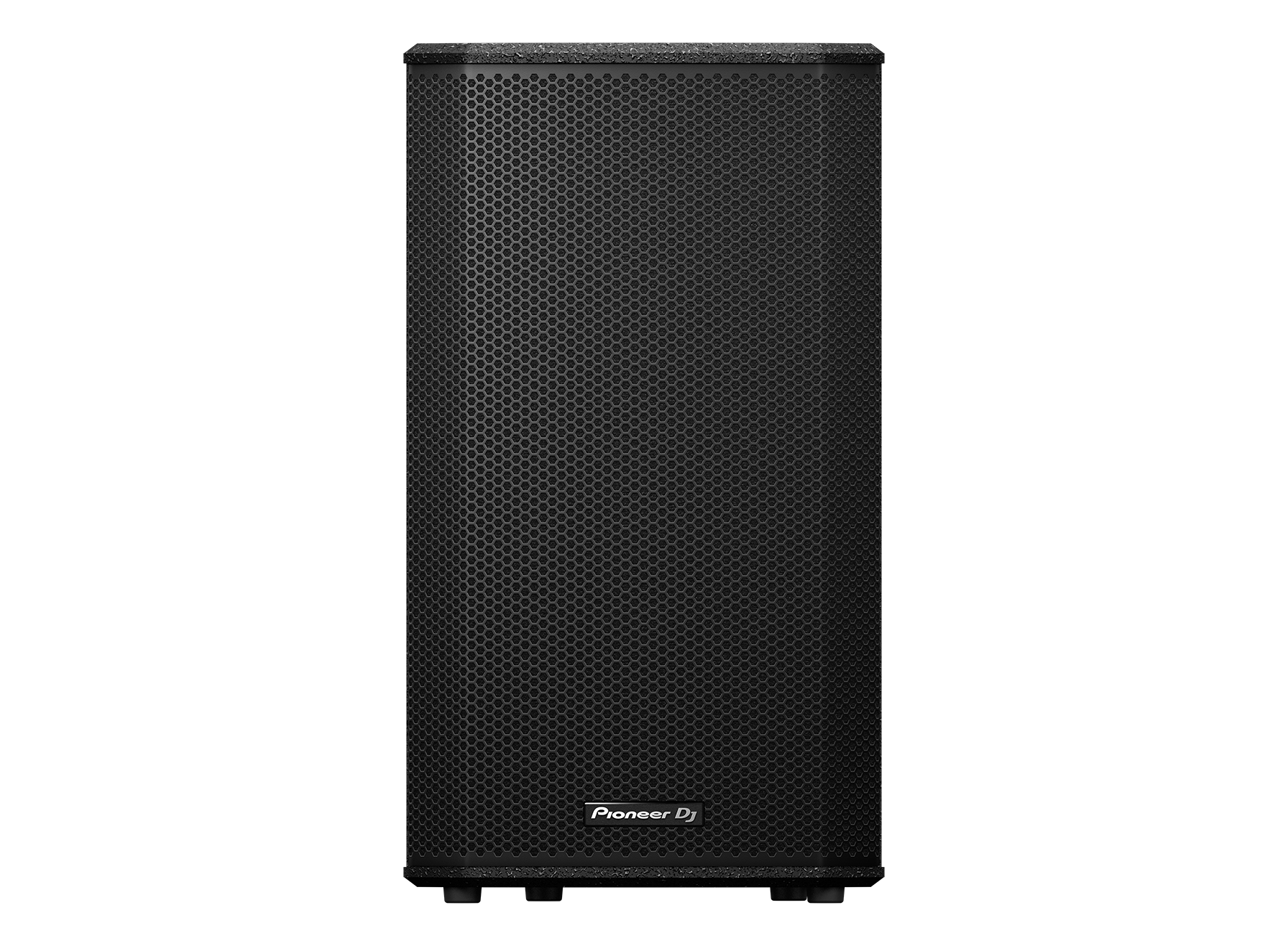

The XPRS122 is a versatile 2-way active loudspeaker capable of producing well-balanced sound in nearly any audial environment. Carrying a robust woofer and driver combo, four incredible DSP modes, and a power-efficient Class D build, this reliable speaker houses a crystal-clear output perfect for live music, stage presentations, and monitoring applications. Sweetwater loudspeaker experts especially appreciate the XPRS122’s electronic protection features, which keep your speakers free from damage and continuously provide faithful audio. Topped off with a sleek plywood housing, rubber feet, and a metal handle for easy transportation, the XPRS122 is a speaker perfect for on-the-go musicians and in-studio producers alike.

Related Videos: XPRS122 12-inch Active Loudspeaker Speaker - Black

NOW PLAYING:XPRS2 Active Speaker Series Introduction

Choosing the Best Powered PA Speakers for You

Why Buy Live Sound at Sweetwater?

Top-shelf woofer and driver combo

From the moment they started, Pioneer DJ has included high-quality drivers in their speakers to ensure a crystal-clear output. The XPRS122 holds true to this standard. With its 12-inch woofer and 1-inch exit compression driver combo, this speaker can provide authentic sound from live music scenarios to presentation applications. A 48Hz–20kHz frequency response ensures a balanced output that’s easily — and efficiently — run by its Class D powering system. So, if you’re looking for a speaker that can deliver powerful sound with the added benefit of using less power, the XPRS122 is your ticket.

Four stunning DSP modes for any application

On top of its stunning driver duo, the XPRS122 offers four unique DSP modes, allowing you to fine-tune your speaker’s output for any situation. Offered modes include Live, Music, Speech, and Monitor, generating a wealth of audial options that exceed standard musical purposes. And don’t worry about performance with any of these options — onboard thermal, overload, digital limiter, and electronic compressor protection ensure that your speaker provides reliable output anywhere, anytime.

Pioneer DJ XPRS122 12-inch Active Loudspeaker Features:

• 2-way active loudspeaker with 12-inch woofer and 1-inch exit compression driver

• Balanced, authentic audio output with impressive bass power

• 4 DSP modes: Live, Music, Speech, and Monitor

• Thermal, overload, digital limiter, and compressor protections

• Metal pole mount, M10 threaded inserts, and pull-back cover allows for easy mounting

• Sturdy plywood construction with rubber feet and metal handle

• 48Hz–20kHz frequency response delivers crystal-clear audio

• Power-efficient Class D power rating

KEY FEATURES

Powerful Class D Amplification

The XPRS2 Series employs Class D Amplification with high output wattage for a powerful and premiere audio experience for performers and listeners alike. The XPRS102 and XPRS122 full-range speakers feature Class D 2000 W amplification, while the XPRS1152S and XPRS1182S subwoofers offer Class D 4000 W amplification.

High Quality, Robust Build

Pioneer DJ’s all-new XPRS2 Series features a sleek all-black, protective plywood cabinet for performance in harsh outdoor and indoor environments. The series models all come with a durable handle to support system portability and handling during setup and take down. The XPRS2 Series also features rubber feet to create separation and shock absorption between surfaces.

Four DSP Modes

Both of the XPRS2 full-range speakers contain four different DSP preset modes—Live, Music, Speech and Studio Monitoring—to address the needs of different listening environments.

16 Customizable User DSP Modes

In addition to the four presets, each XPRS2 full-range speaker includes 16 custom user DSP modes - which can be saved with different names - to ensure the EQ settings are maximized for every scenario.

Full-Range Speaker Design

The XPRS122 is the larger full range speaker counterpart in Pioneer DJ’s XPRS2 Series. Featuring a 12” woofer and 3” voice coil with a 1” exit compression driver and 1.75” voice coil, the speakers deliver comprehensive sound coverage across mid to large audiences and venues. Boasting a frequency response of 48 Hz – 20 kHz and a maximum SPL of 131 dB, the versatile full range speaker delivers powerful sound built to thrive in even the harshest of sound environments such as a live DJ set.

Main Features

Type

12 inch 2-way active loudspeaker

Amplifier Output

• Class D

• 2000W peak

Accessories

• XPRS122 x 1 (not sold as a pair)

• Powerd cord

• Quick start guide

• Important Safety Precautions

Specifications

Power supply

110 V to 240 V (50 Hz/60 Hz)

Power consumption

800 W

Width

362.7 mm

Height

637 mm

Depth

350 mm

Weight

20.2 kg

Frequency Range

48 - 20000 Hz

System characteristic

DSP modes

• Factory Presets (4 types)

• Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)

• EQ (4-band equalizer)

• User Programs (16 presets)

DSP presets modes

• Factory presets

• LIVE

• MUSIC

• SPEECH

• MONITOR

Maximum Sound Pressure

131 dB

Cross Over Frequency

2 kHz

Terminals

Inputs

• MIC / LINE x 1 (Combo)

• HI-Z / LINE x 1 (Combo)

• 3.5 mm stereo mini jack x 1 (Unbalanced input)

Outputs

MIX (XLR)

Speaker

Driver

• 12-inch ferrite LF cone driver

• 1.75 inch compression driver

Finish

Black paint, Rubber feet

Handle

2 metal handles (on left side and top)

Pole socket

35 mm socket

Rigging point

10x M10

Enclosure

Plywood (TSCA)

Protection

Amplifier Protection

• Thermal limiting

• Digital Limiter

• Digital compressor

Driver Protection

Short circuit protection

Power unit Protection

• Primary AC mains overcurrent protection

• Primary AC mains overvoltage protection

* The specifications and design of this product are subject to change without notice.

Tech Specs

• Powered:Yes

• Channels:3-channel mixer

• LF Driver Size:12" woofer

• HF Driver Size:1" compression driver

• Total Power:2000W Peak

• Inputs:2 x XLR-1/4" combo (mic/line), 1 x 1/8" (aux in)

• Outputs:1 x XLR

• Frequency Response:48Hz-20kHz (-6dB)

• Maximum Peak SPL:131dB SPL

• Signal Processing:DSP Presets

• Enclosure Material:Plywood

• Mounting Options:Pole, Floor Wedge

• Power Source:Standard IEC AC cable

• Height:25.07"

• Width:14.28"

• Depth:13.78"

• Weight:44.6 lbs.

• Manufacturer Part Number:XPRS122/CMXEG
